OVERVIEW

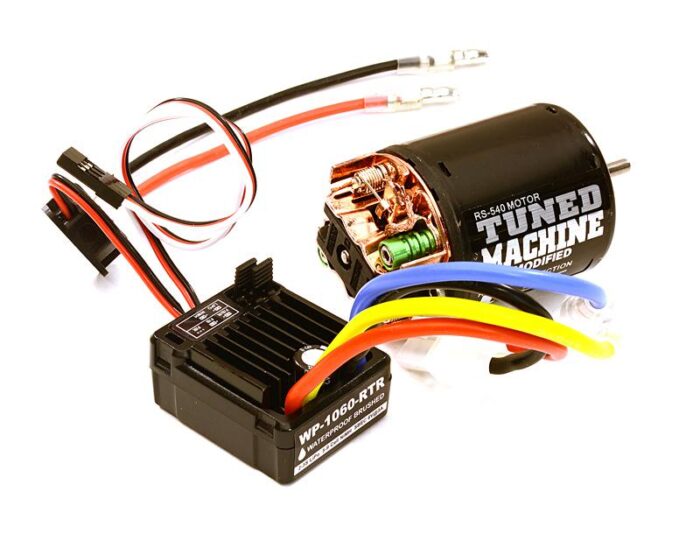

Power up your latest 1/10-scale rig with our wallet-friendly WP-1060 ESC & 540-Size Brushed Motor Combos. The waterproof ESC is designed for brushed motors, with a waterproof housing and a current rating of 60A/360A (continuous/peak). It is compatible with 2-3S LiPo/6-9 Cells NiMH batteries, and has a built-in 6V/3A BEC output. The ESC is equipped with 16AWG wiring, a Tamiya-style battery connector, and 4.0 bullet connectors for motor hookup. The ESC measures in at 36.5×32.0x18.0mm and can handle most 540/550 sized motors . The ESC is paired up with our reliable 540-type brushed motors in 19-turn to 55-turn winds.
19-turn Combo, #C27382
23-turn Combo, #C27381
35-turn Combo, #C27378
45-turn Combo, #C27379
55-turn Combo, #C27380

Specifications
Type: 1/10th Brushed, Waterproof
Cont./Peak Current: 60A/360A
Input: 2-3S LiPo/6-9 Cells NiMH
BEC Output: Switch Mode:6V/3A
Wires & Connectors
Input Wires: Red-16AWG / Black-16AWG
Output Wires: Blue-16AWG / Yellow-16AWG
Input Connectors: Tamiya-style Connector
Output Connectors: 4.0 Bullet Connectors (Female)
Size & Weight
Dimensions: 36.5×32.0x18.0mm
Weight: 39g
ESC Motor Wind Limits (540/550 Size Motors)
2S LiPo: 12-Turn and up
3S LiPo: 18-Turn and up

included Motor
Type: Brushed
Size: 54

Item# C27381 Barcode: 91789028381
