Power HD A-50CHV HV CNC Brushless Steel & Aluminum Gear Digital Servo 50kg/0.16s

OVERVIEW

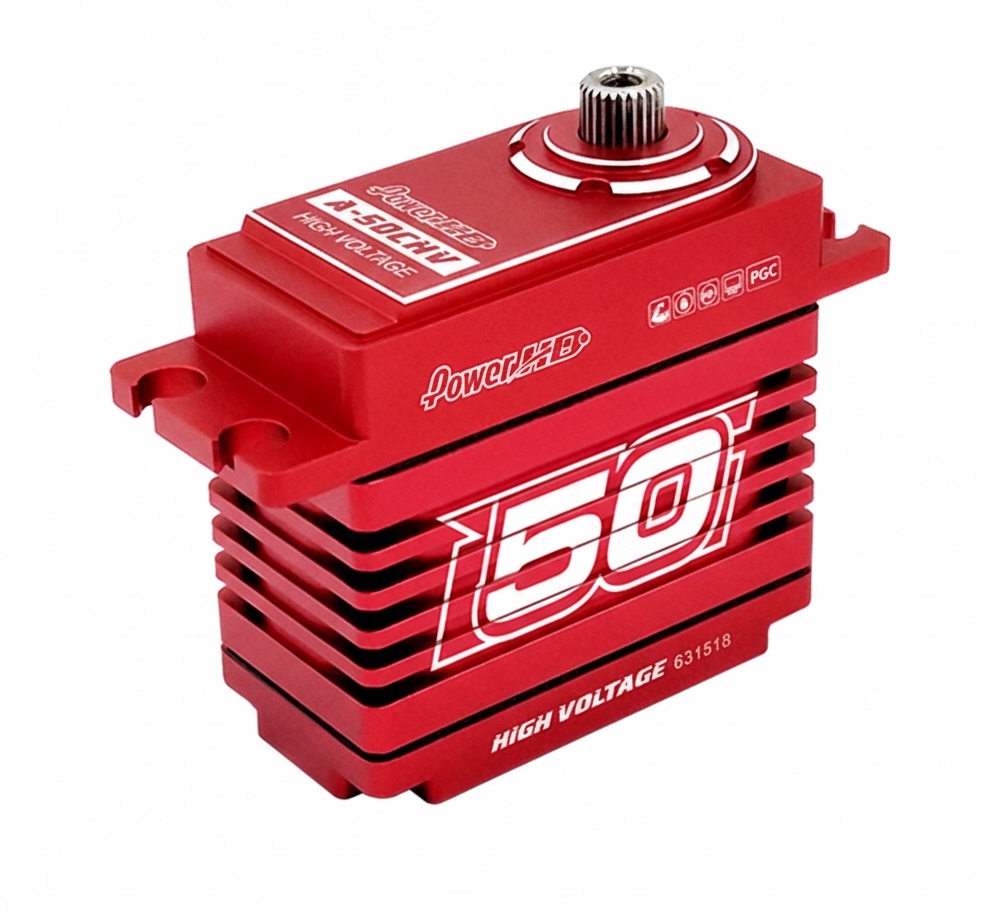

You can’t miss the bright red anodized aluminum case of the Power HD A-50CHV High Voltage Programmable Servo. However, it isn’t just for looks – the A-50CHV servo is fast, strong, and even programmable*! The A-50CHV provides up to 50.0 kg-cm (694.4 oz/in) of torque at 0.16 sec. (@8.4V) and features a coreless motor, dual ball bearings, steel and aluminum internal gears, and an operating voltage between 6.0-8.4VDC. With the optional PG-CB63 programming box (*sold separately) you can unlock customizable servo parameters to get that perfect setup! The Power HD A-50CHV dimensions are 40.7 x 20.5 x 38.7mm ( 1.60 x 0.81 x 1.52 in) and weighs 80g (2.82 oz). Available in red only.

Torque(6.0V): 35.0 kg-cm ( 486.1 oz/in)
Torque(7.4V): 45.0 kg-cm ( 625.0 oz/in)
Torque(8.4V): 50.0 kg-cm ( 694.4 oz/in)
Speed: 0.19 sec (6.0V)│0.17 sec (7.4V)│0.16 sec (8.4V)
Operating Voltage：6.0 ~ 8.4V DC Volts
Weight: 80 g (2.82 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Steel & Aluminum
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 333hz
Size：40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
Compatible with program box only
Item# C34163 Barcode: 91789048292
